Floor Scales
With our unique combination of experience, suppliers and our fabrication plant Globeweigh have been providing unique solutions for many years

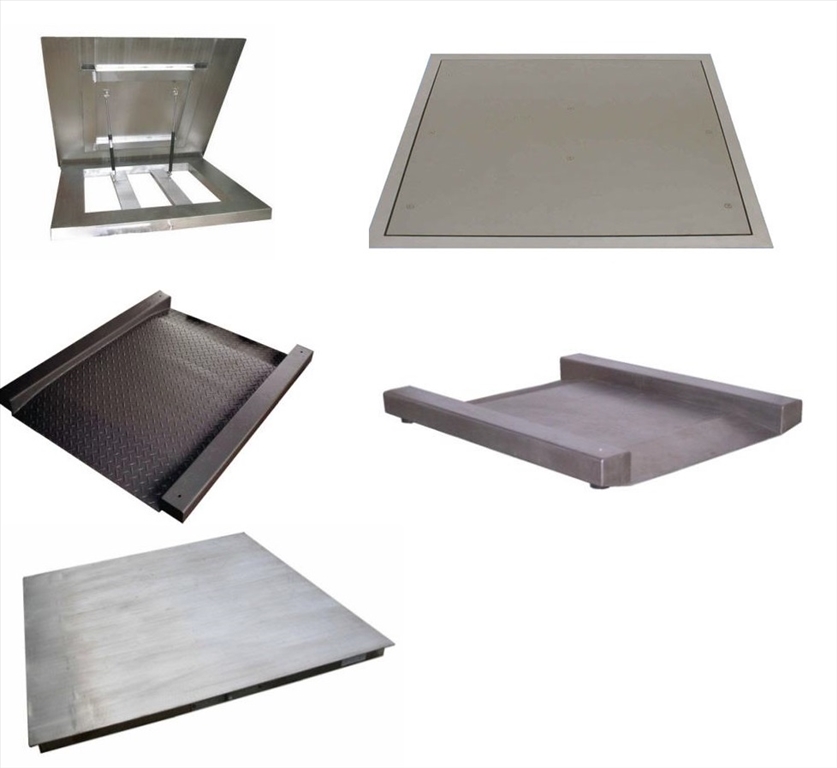

Floor Scales:
Above ground and made in various sizes, capacities, and materials to suit the environment. Surface finish can be to 0.5 Ra.
Easy Lift:
This has the added advantage of using struts for supporting the top plate. It enables the operator to lift the cover easily and get access to all areas of the scale for cleaning.
Drive Through:
This scale works well in areas where a lifting device may not be available to place, for instance, a large drum on the scale. A simple pallet truck may be used.
Pit Scale:
Where access is difficult, and space is required the pit scale sits easily on the floor.
(Note: The easy lift above will also sit into a pit for cleaning access)
Heavy Duty Painted Mild Steel Platforms
- 4 OIML R60 C3 approved IP67 load cells
- Load cell cables and junction box located within fabrication.
- Wide box section sub-frame for extra strength.
- Removable side plate for easy access to junction box with summing board.
- Threaded eyebolt holes for easy lifting.
- 5mm top plate.
- Various capacities and sizes available, Please contact us for further information.
All Stainless Steel Platforms
- Fitted with stainless steel IP68 C3 load cells.
- Load cell cables and stainless steel junction box located within fabrication.
- Removable side plate for easy access to junction box with summing board.
- Threaded eyebolt holes for easy lifting.
- Optional stainless steel pit frame for dormant installation.
- Various capacities and sizes available, Please contact us for further information.
Painted Mild Steel Drive Through Platform
- Ultra low profile with integral ramps.
- IP67 R60 approved mild steel load cells.
- Various capacities and sizes available, Please contact us for further information.
All Stainless Steel Drive Through Platform
- Fitted with stainless steel IP68 C3 load cells.
- Ultra low profile with integral ramps.
- Various capacities and sizes available, Please contact us for further information.
Hinged Stainless Steel Platforms
- Fitted with C3 approved IP68 rated stainless steel load cells.
- Gas damped struts for lowering.
- Supporting strut when open.
- 304 grade stainless steel.
- Optional stainless steel pit frame for dormant installation.
- Various capacities and sizes available, Please contact us for further information.
